When asset embedding is enabled you can create embeddable version of assets which can be displayed on any external webpage, email via an HTML code. Embedded assets are publicly available so therefore do not require a login to Asset Bank in order to view them.
Please be aware that if you delete the original asset file from your Asset Bank then any embeddable versions you may have created will also be deleted from the system. Currently supported formats are JPG, TIFF, PNG and GIF; other file formats would be automatically converted.
To enable it you will need to
- Enable the following setting in your ApplicationSettings.properties file:
# Is asset file repurposing (AKA embedding) enabled?
Once you have changed the setting to 'true' you will need to restart the web application for the setting to take effect.
- Add a new "File System" or "Amazon S3" Storage Device for Embedded Assets
- "File System": add a new device and set it to be used for "Embedded Assets"
Choose where to store the embedded files.
Note, if the path does not start with a slash or drive letter, it is assumed to be relative to the application path (i.e. inside your Asset Bank webapp folder)
Insert the URL that will be serving the embedded images
- "Amazon S3": add a new device and set it to be used for "Embedded Assets"
Continue setting it up as regular storage device following the help page.
Note, you will not need to set any special permission on the S3 bucket, Asset Bank will make an embedded asset publicly accessible when creating its embeddable code.
Using the default location for "File System" device type
Alternatively you can use Asset Bank to serve your embedded images
by setting "images/assets" in the Local Path
and set an empty Http Base Url in order to use your application URL
Please review the default location and method for serving these embedded assets as these have limitations.
Note, if you re-upload a new asset (e.g. to create an updated version of the original) then this new version will now be shown in the sites you have embedded the asset in.
This functionality can be used by Admin users and user Groups which have 'Users can embed assets' option enabled and 'Download' permissions on the asset to embed.

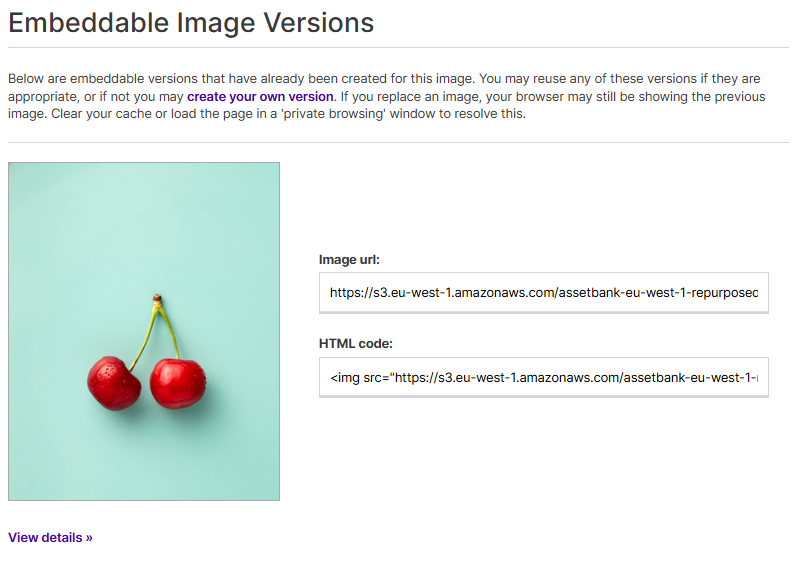

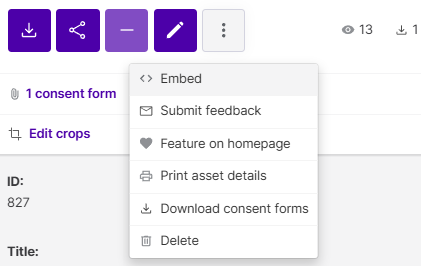

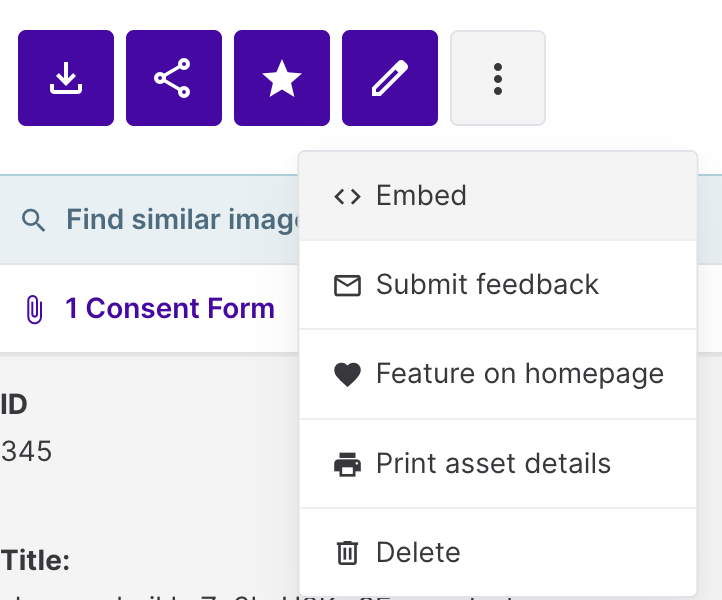

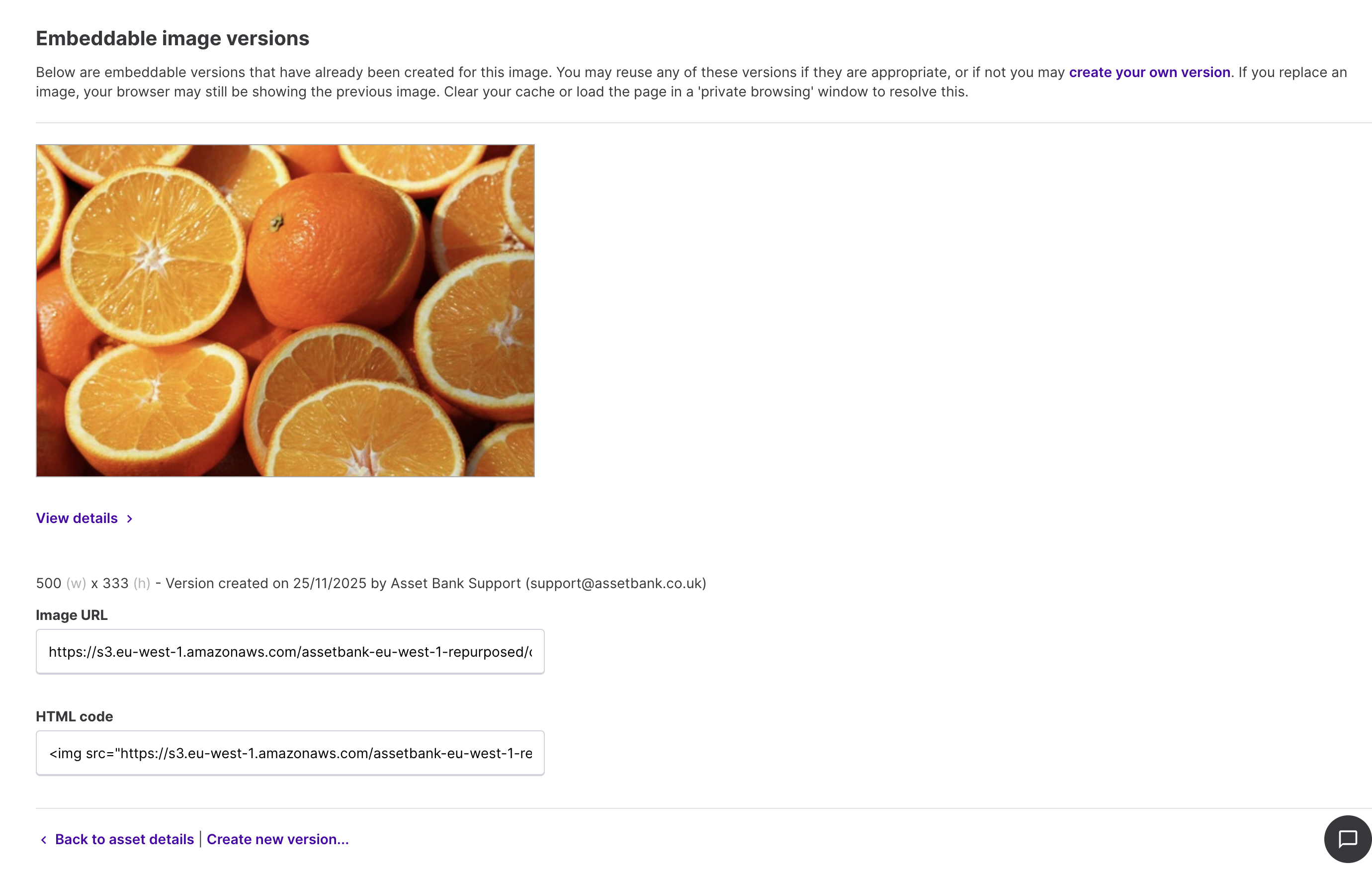

Once an user has permission to embed an asset then an "embed" link is visible on the asset page.
Asset Bank can create an embedded version of an image, file, video and audio assets. To change how this embedded versions get created you will need to edit the following setting in ApplicationSetting.properties file
- Image assets:
max-image-repurpose-dimension: maximum width or height dimension of a repurposed image
default-repurposed-image-max-width: maximum width of the default repurposed image
default-repurposed-image-max-height: maximum height of the default repurposed image
default-repurposed-image-extension: format (i.e. extension) of the default repurposed image
- Video assets:
repurposed-video-maintain-preview: whether repurposed videos should maintain the selected preview image that the asset has at the time of the repurposed versions creation
repurposed-video-preview-max-height: maximum height of the video preview on the repurposed/embedded video page.
